8MP Uniview Dual Lens

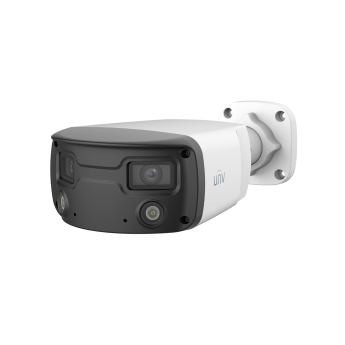

NDAA Compliant The UNV 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera (UNV-IPC2K24SE-ADF40KMC-WL-I0) is a high-quality surveillance camera designed to provide sharp and clear images even in challenging lighting conditions. It comes with various advanced features and specifications:

FEATURES
High-quality image with 4MP, 1/2.9"CMOS sensor
4MP (3840*1080)@25fps (Human Body Detection off); 4MP (3840*1080)@20fps (Human Body Detection on）
The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10°
Ultra 265, H.265, H.264, MJPEG
Support Human Body Detection
Colorhunter technology ensures 24-hour full-color images
Alarm:1 in/1 out
Audio: 1 in/1 out
Built-in speaker and dual mics
Support 256 GB micro SD card
12V DC/PoE power supply
TECHNICAL SPECIFICATIONS
Camera

Sensor: 1/2.9″, 4.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.0005 lux (F1.0, AGC ON)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
WDR: DWDR
S/N: >56dB
Lens type: 2 * 4.0mm@F1.0
Iris: Fixed
Field of View (H): 160.00°±10°
Field of View (V): 43.22°
Field of View (D): 180.13°±10°
DORI Distance
Lens (mm): 4.0
Detect (m): 64.3
Observe (m): 25.7
Recognize (m): 12.9
Identify (m): 6.4
Illuminator
LED Distance: Up to 30m (98ft)
LEDs Number: 2
LED On/Off Control: Auto/Manual
Video

Video Compression: Ultra265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main Profile, High profile
Frame Rate
Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off）
Sub Stream: 1920*540, Max 25fps
Video Bit Rate: 1920*540, Max 25fps
U-code: Support
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Double streams

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: N/A
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events

Basic Detection: Human Body Detection, Motion detection, tampering alarm, audio detection
General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication
Audio

Audio Compression: G.711
Audio Bitrate: 64 Kbps
Two-way audio: Supported
Suppression: Supported
Sampling Rate: 8KHZ
Storage

Edge Storage: Micro SD, up to 256GB
Network Storage: ANR, NAS (NFS)
Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client: EZStation/EZView/EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface

Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O: 1/1
RS485: N/A
Built-in Mic: Built-in two mics
Built-in Speaker: Support
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
Certifications

EMC
CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General

Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.5W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (L × W × H): 273× 130 × 76mm (10.7” × 5.1” × 3.0”)
Weight: 0.95kg (2.09lb)
Material: Metal
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: Support
